INDUSTRIAL FRICTION FEEDERS

Walco Systems VF Feeders

High-capacity industrial vacuum friction feeders built for the most demanding commercial production environments. From bags and envelopes to heavy bound books, Walco's patented feed technology keeps your line running.

  • Industrial Durability: Engineered with large diameter steel shafts and sealed shaft locking collar bearings for low-maintenance, high-volume operation.

  • Precision Separation: Over 50 inches of high-friction belts plus vacuum pull difficult materials, from bags to perfect-bound books.

  • Rapid Changeovers: Quick and easy setup keeps production lines moving.

/

/

/

Walco Systems VF Feeders

INDUSTRIAL FRICTION FEEDERS

Walco Systems VF Feeders

High-capacity industrial vacuum friction feeders built for the most demanding commercial production environments. From bags and envelopes to heavy bound books, Walco's patented feed technology keeps your line running.

  • Industrial Durability: Engineered with large diameter steel shafts and sealed shaft locking collar bearings for low-maintenance, high-volume operation.

  • Precision Separation: Over 50 inches of high-friction belts plus vacuum pull difficult materials, from bags to perfect-bound books.

  • Rapid Changeovers: Quick and easy setup keeps production lines moving.

Mailtech

/

/

/

Walco Systems VF Feeders

INDUSTRIAL FRICTION FEEDERS

Walco Systems VF Feeders

High-capacity industrial vacuum friction feeders built for the most demanding commercial production environments. From bags and envelopes to heavy bound books, Walco's patented feed technology keeps your line running.

  • Industrial Durability: Engineered with large diameter steel shafts and sealed shaft locking collar bearings for low-maintenance, high-volume operation.

  • Precision Separation: Over 50 inches of high-friction belts plus vacuum pull difficult materials, from bags to perfect-bound books.

  • Rapid Changeovers: Quick and easy setup keeps production lines moving.

Executive Summary

The Walco VF Series is the workhorse of the mailing and packaging industry. Walco utilizes an all-steel drivetrain, including high-torque gear drive motors, steel drive pulleys, and sealed shaft locking collar bearings. This rugged construction ensures that the feeder maintains precision even under the stress of high-speed, heavy-material production. With quick and easy setup and non-proprietary components, the VF series integrates seamlessly into existing lines, feeding everything from jewel cases and perfect-bound books to heavy chipboard and bags.

Key Advantages

  • Uncompromising Drivetrain: Built with a high-torque gear drive motor, steel drive pulleys, and large diameter steel shafts.

  • Extreme Material Versatility: High-friction feed belts and adjustable gates allow you to feed paper, corrugated, booklets, bags, and heavy chipboard with a single machine.

  • Sealed Bearings: Equipped with sealed shaft locking collar bearings for long-term reliability and minimal maintenance in dusty warehouse environments.

  • Self-Contained Vacuum: Independently controlled, self-contained vacuum adds pulling power on hard-to-feed stock, and a tool-less, micro-adjust Shuttle Gate speeds setup between thin documents and thick materials.

  • Model Scalability: Available in standard (20") and wide-format (29") versions, including the VF200AL autoloader, which loads large stacks instead of shingled product.

  • Modular Integration: Easily integrates with inkjet bases, tabbers, and labellers, featuring variable speed control to match existing lines perfectly.

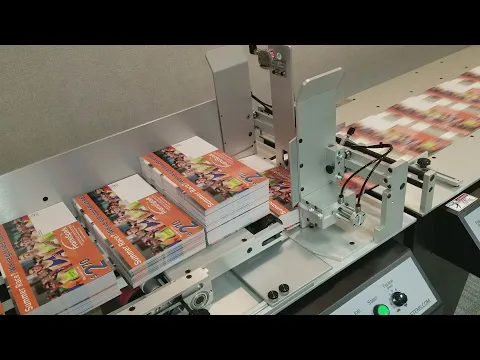

See the

Walco Systems VF Feeders

in action

Technical Specifications

SpecificationF110ESL204VF200VF200ALVF280
Media width2" to 11"3" to 19.5"3" to 19.5"14"29"
Media length4" to 18"28"28"—28"
Media thickness1.12"3/4"1"—1"
Maximum line speed400 fpm—300 fpm—400 fpm
Power requirement110 VAC 1-phase 5 amp circuit—110 VAC 1-phase 10 amp circuit—110 VAC 1-phase 10 amp circuit
Dimensions (L x W x H)18.1"L x 15.0W x 21.25"H53"L x 28.5"W x 33-36" H24"L x 28.5"W x 33-36" H105"L x 23.5"W x 33-36" H24"L x 37.5"W x 33-36" H
All models
FeatureSpecification
Feed mechanismFriction feed, Shingle / autoload, Vacuum feed
Substrate / mediaPrinted mail pieces (self-mailers / postcards / booklets / brochures / sheets), Corrugated, Poly bags / pouches, Chipboard / paperboard, Envelopes
ApplicationFeeding / inserting / collating / attaching
SpecificationF110ESL204VF200VF200ALVF280
Media width2" to 11"3" to 19.5"3" to 19.5"14"29"
Media length4" to 18"28"28"—28"
Media thickness1.12"3/4"1"—1"
Maximum line speed400 fpm—300 fpm—400 fpm
Power requirement110 VAC 1-phase 5 amp circuit—110 VAC 1-phase 10 amp circuit—110 VAC 1-phase 10 amp circuit
Dimensions (L x W x H)18.1"L x 15.0W x 21.25"H53"L x 28.5"W x 33-36" H24"L x 28.5"W x 33-36" H105"L x 23.5"W x 33-36" H24"L x 37.5"W x 33-36" H
All models
FeatureSpecification
Feed mechanismFriction feed, Shingle / autoload, Vacuum feed
Substrate / mediaPrinted mail pieces (self-mailers / postcards / booklets / brochures / sheets), Corrugated, Poly bags / pouches, Chipboard / paperboard, Envelopes
ApplicationFeeding / inserting / collating / attaching
SpecificationF110ESL204VF200VF200ALVF280
Media width2" to 11"3" to 19.5"3" to 19.5"14"29"
Media length4" to 18"28"28"—28"
Media thickness1.12"3/4"1"—1"
Maximum line speed400 fpm—300 fpm—400 fpm
Power requirement110 VAC 1-phase 5 amp circuit—110 VAC 1-phase 10 amp circuit—110 VAC 1-phase 10 amp circuit
Dimensions (L x W x H)18.1"L x 15.0W x 21.25"H53"L x 28.5"W x 33-36" H24"L x 28.5"W x 33-36" H105"L x 23.5"W x 33-36" H24"L x 37.5"W x 33-36" H
All models
FeatureSpecification
Feed mechanismFriction feed, Shingle / autoload, Vacuum feed
Substrate / mediaPrinted mail pieces (self-mailers / postcards / booklets / brochures / sheets), Corrugated, Poly bags / pouches, Chipboard / paperboard, Envelopes
ApplicationFeeding / inserting / collating / attaching

Frequently Asked Questions

What is the most durable friction feeder for heavy production?

The Walco VF series uses an all-steel drivetrain, high-torque gear motors, steel drive pulleys, and sealed bearings, and Walco designed every part to take an outstanding amount of abuse. It holds feeding precision on chipboard, perfect-bound books, and thick mailers run all day.

What is the difference between the Walco VF200, VF280, VF200AL, and 655VFT?

The VF200 is the standard 20 inch feeder. The VF280 widens to 29 inches for large format. The VF200AL adds an autoloader that takes large stacks instead of shingled product, for longer runs per fill. The 655VFT pairs the VF200 with an integrated vacuum transport for inline inkjet and labeling.

Can a friction feeder handle 1 inch thick booklets and chipboard?

Yes. All Walco VF models feed material up to 1.0 inch thick, with a tool-less shuttle gate for micro-adjusting the gap between thin and heavy stock, and high-friction belts and vacuum that grip poly bags and bound books.

What causes a feeder to double feed?

Worn feed belts, the wrong gate gap for the stock, static on coated pieces, and poorly fanned stacks, roughly in that order. Vacuum-assisted feeders like the Walco VF reduce misfeeds on hard stock; on an existing feeder it is usually a belt-and-setup service call, not a replacement.

Where can I see a Walco feeder running before I buy?

Mailtech is a factory-authorized Walco distributor with Walco feeders installed at mail and print shops across Long Island, New York, New Jersey, and Connecticut. Call and we will arrange a visit to a running line or a demo on your own stock.
