INDUSTRIAL UV INKJET

DPI Hawk M7

A high-speed, high-resolution, single-pass UV or AQ system powered by Kyocera's advanced print head technology. Designed to mount seamlessly onto your existing press, transport base, or rewinder for precision variable data printing.

  • Crisp Resolution: 600 DPI across the head, up to 1200 DPI in the direction of travel.

  • Scalable Widths: Expandable print coverage from 4.25" up to 26.4".

  • Maximum Scan Rates: Advanced barcode shaving tool ensures Grade A readability (speed and substrate dependent).

INDUSTRIAL UV INKJET

DPI Hawk M7

A high-speed, high-resolution, single-pass UV or AQ system powered by Kyocera's advanced print head technology. Designed to mount seamlessly onto your existing press, transport base, or rewinder for precision variable data printing.

  • Crisp Resolution: 600 DPI across the head, up to 1200 DPI in the direction of travel.

  • Scalable Widths: Expandable print coverage from 4.25" up to 26.4".

  • Maximum Scan Rates: Advanced barcode shaving tool ensures Grade A readability (speed and substrate dependent).

Mailtech

INDUSTRIAL UV INKJET

DPI Hawk M7

A high-speed, high-resolution, single-pass UV or AQ system powered by Kyocera's advanced print head technology. Designed to mount seamlessly onto your existing press, transport base, or rewinder for precision variable data printing.

  • Crisp Resolution: 600 DPI across the head, up to 1200 DPI in the direction of travel.

  • Scalable Widths: Expandable print coverage from 4.25" up to 26.4".

  • Maximum Scan Rates: Advanced barcode shaving tool ensures Grade A readability (speed and substrate dependent).

Executive Summary

The DPI Hawk M7 is the ultimate industrial-grade, single-pass inkjet solution for high-volume variable data printing. Powered by robust Kyocera print heads, this highly modular system easily integrates directly into your existing production lines. Whether you are printing labels, pharmaceutical packaging, direct mail, or secure ticketing, the Hawk M7 delivers crisp, durable, and lightning-fast results tailored precisely to your application.

Key Advantages

  • High-Speed Inkjet: Up to 1,000 fpm, or 100,000 pieces per hour (6 1/8" x 11" pieces running portrait), at 600x300 DPI with the M7 DS (Double Speed)

  • Scalable Print Width: Modular design expands from a compact 2.5" module up to 26.4" to scale with your evolving production needs.

  • Exceptional Readability: Achieve crisp text, images and barcodes up to 1200 DPI aided by adjustable drop sizing and advanced barcode shaving for maximum scan rates.

  • Substrate Versatility: Print effortlessly on coated, uncoated paper, foil, PVC, and plastics on the same system and change spot colors in under 10 minutes with no flushing needed.

  • Reduced Downtime: In 30 seconds systems are ready to print. An automated service mode and integrated head tray drastically reduce manual maintence and setup time.

  • High-Volume Ready: Features high-capacity 5L to 20L ink supplies to keep your line running longer without costly interruptions.

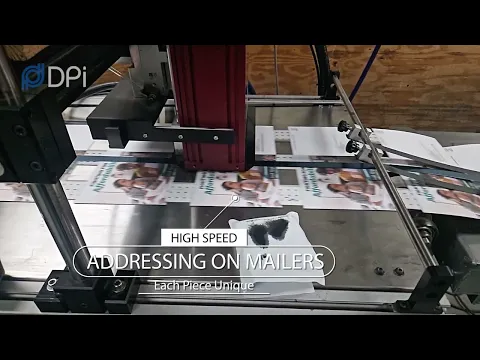

See the

DPI Hawk M7

in action

Technical Specifications

FeatureSpecification
Print width4.25" to 26.4" (single head to full width)
Maximum line speed166 to 1,200 fpm (depends on resolution and ink)
Print resolution300 to 1,200 dpi
Printhead technologyKyocera piezo head, Piezo drop-on-demand
Ink typeUV-curable ink, Aqueous (water-based) ink
Color capabilitySpot color, Digital varnish, Invisible security ink, White ink, Monochrome (single-color or dual-color configurations)
Substrate / mediaCoated paper, Plastic, Uncoated paper, Foil / metallized, Flexible packaging film, PVC / vinyl, Plastic cards, Pressure-sensitive label stock, Chipboard / paperboard, Corrugated, Envelopes, Polyester / PET film, Synthetic paper, Tag / ticket stock, Polyethylene film, Polypropylene / BOPP, Printed mail pieces (self-mailers / postcards / booklets / brochures / sheets), Thermal paper (direct thermal or thermal transfer stock)
Curing / dryingLED UV Curing Lamps available with system purchase
Mounts on / integrates withConverting equipment / ticket & form presses, Flexo press, Transport base / vacuum base, Rewinder / unwinder, Bagger / wrapper, Inserter, and more
ApplicationPackaging printing, Security & ticketing, Label printing, Direct mail / mailing, Card personalization, Direct mail addressing, and more
Printable data1D barcode, QR code, 2D barcode, Serial / sequential numbers, Graphics / logos, USPS barcodes (IMb, POSTNET, IMpb)
Input file formatsCSV, TXT & ASCII
Interface / connectivityInterface to read and print system
Power requirement110 to 220 VAC 50-60 Hz
Compressed air80psi minimum (clean/dry)
FeatureSpecification
Print width4.25" to 26.4" (single head to full width)
Maximum line speed166 to 1,200 fpm (depends on resolution and ink)
Print resolution300 to 1,200 dpi
Printhead technologyKyocera piezo head, Piezo drop-on-demand
Ink typeUV-curable ink, Aqueous (water-based) ink
Color capabilitySpot color, Digital varnish, Invisible security ink, White ink, Monochrome (single-color or dual-color configurations)
Substrate / mediaCoated paper, Plastic, Uncoated paper, Foil / metallized, Flexible packaging film, PVC / vinyl, Plastic cards, Pressure-sensitive label stock, Chipboard / paperboard, Corrugated, Envelopes, Polyester / PET film, Synthetic paper, Tag / ticket stock, Polyethylene film, Polypropylene / BOPP, Printed mail pieces (self-mailers / postcards / booklets / brochures / sheets), Thermal paper (direct thermal or thermal transfer stock)
Curing / dryingLED UV Curing Lamps available with system purchase
Mounts on / integrates withConverting equipment / ticket & form presses, Flexo press, Transport base / vacuum base, Rewinder / unwinder, Bagger / wrapper, Inserter, and more
ApplicationPackaging printing, Security & ticketing, Label printing, Direct mail / mailing, Card personalization, Direct mail addressing, and more
Printable data1D barcode, QR code, 2D barcode, Serial / sequential numbers, Graphics / logos, USPS barcodes (IMb, POSTNET, IMpb)
Input file formatsCSV, TXT & ASCII
Interface / connectivityInterface to read and print system
Power requirement110 to 220 VAC 50-60 Hz
Compressed air80psi minimum (clean/dry)
FeatureSpecification
Print width4.25" to 26.4" (single head to full width)
Maximum line speed166 to 1,200 fpm (depends on resolution and ink)
Print resolution300 to 1,200 dpi
Printhead technologyKyocera piezo head, Piezo drop-on-demand
Ink typeUV-curable ink, Aqueous (water-based) ink
Color capabilitySpot color, Digital varnish, Invisible security ink, White ink, Monochrome (single-color or dual-color configurations)
Substrate / mediaCoated paper, Plastic, Uncoated paper, Foil / metallized, Flexible packaging film, PVC / vinyl, Plastic cards, Pressure-sensitive label stock, Chipboard / paperboard, Corrugated, Envelopes, Polyester / PET film, Synthetic paper, Tag / ticket stock, Polyethylene film, Polypropylene / BOPP, Printed mail pieces (self-mailers / postcards / booklets / brochures / sheets), Thermal paper (direct thermal or thermal transfer stock)
Curing / dryingLED UV Curing Lamps available with system purchase
Mounts on / integrates withConverting equipment / ticket & form presses, Flexo press, Transport base / vacuum base, Rewinder / unwinder, Bagger / wrapper, Inserter, and more
ApplicationPackaging printing, Security & ticketing, Label printing, Direct mail / mailing, Card personalization, Direct mail addressing, and more
Printable data1D barcode, QR code, 2D barcode, Serial / sequential numbers, Graphics / logos, USPS barcodes (IMb, POSTNET, IMpb)
Input file formatsCSV, TXT & ASCII
Interface / connectivityInterface to read and print system
Power requirement110 to 220 VAC 50-60 Hz
Compressed air80psi minimum (clean/dry)

Frequently Asked Questions

Can you add variable data inkjet to an existing flexo press?

Yes. The DPI Hawk M7 mounts inline on a flexo, web, or finishing press with a custom head bracket and prints variable barcodes, serial numbers, QR codes, and text at press speed. You keep the press and the plates; the inkjet unit adds the digital layer.

How fast can inline inkjet run on a flexo press or web?

The Hawk M7 runs up to 500 feet per minute at 600 x 300 dpi, and the M7 DS double-speed version runs up to 1,000 feet per minute at the same resolution. That covers most narrow-web label and forms presses without slowing them down.

How wide can the DPI Hawk M7 print?

From a single 4.25 inch Kyocera module up to 26.4 inches of print width. You can start narrow for a barcode lane and add modules later without replacing the system.

What can the Hawk M7 print on?

Coated and uncoated paper, foil, plastic, PVC, chipboard, label stock, tag and ticket stock, thermal paper, and synthetic materials, with UV or aqueous ink. Spot color inks change on the same system in under 10 minutes with no flushing, so one head covers mailing, label, and packaging work.

Who services DPI inkjet systems in New York, New Jersey, and Connecticut?

Mailtech in Deer Park, NY is a factory-authorized DPI distributor with our own technicians covering the tri-state area and the Northeast. We install, train operators, stock DPI ink locally, and support Hawk systems running on both mailing lines and flexo presses.
